NeoDen YY1 Desktop Pick and Place Machine, Used, Like New

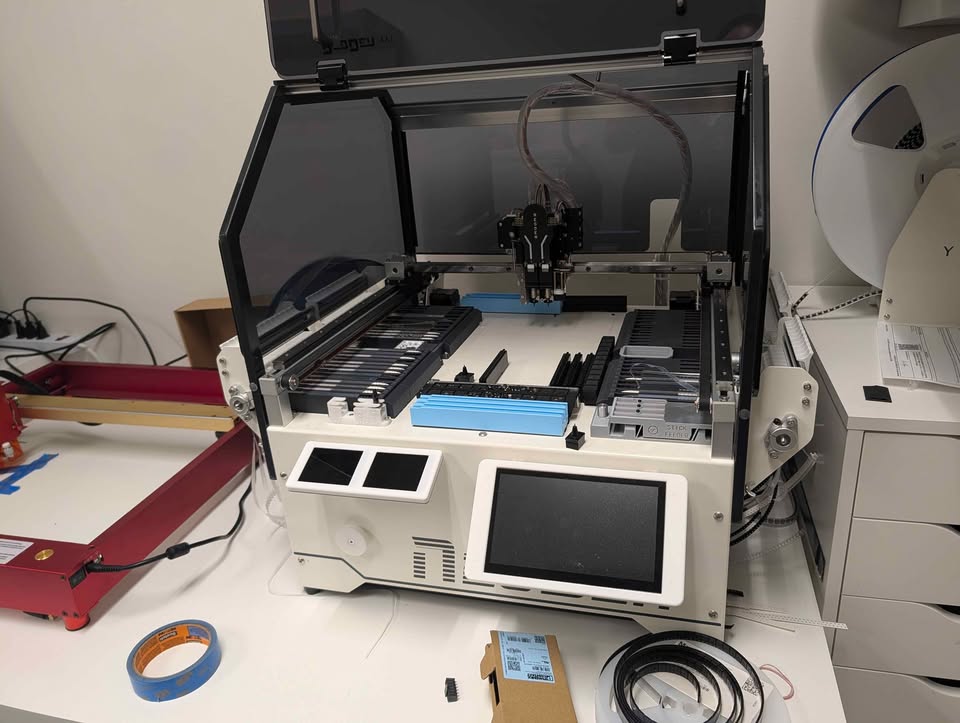

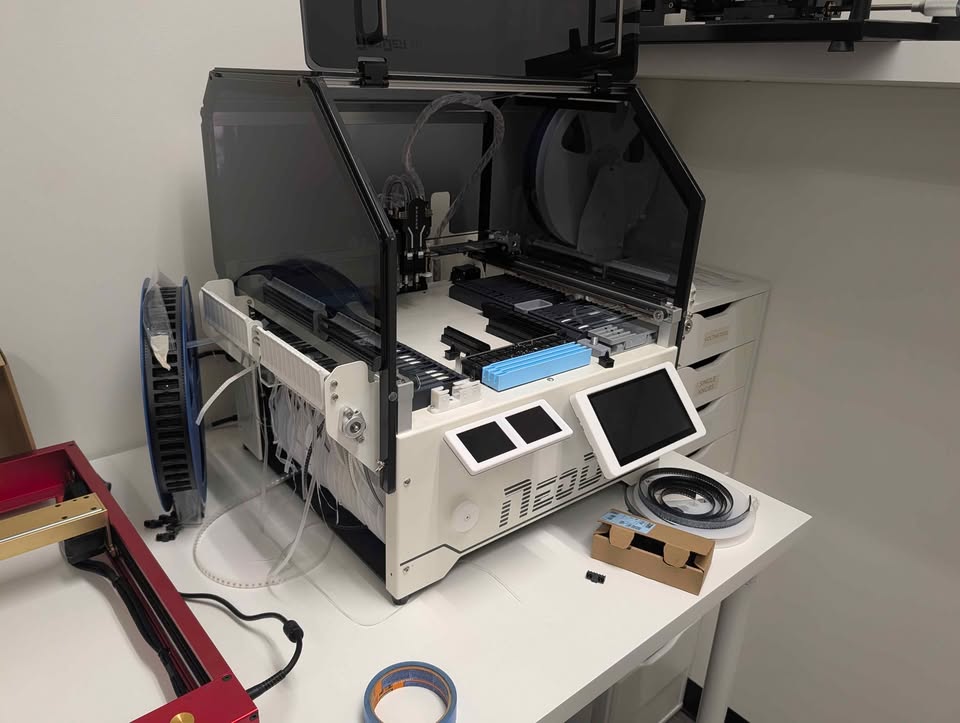

Used NeoDen YY1 desktop SMT pick and place machine, retired from the LF Audio assembly line in Fullerton, CA. Like new condition. Includes the feeders and component reels shown in the photos.

Manufacturer specifications

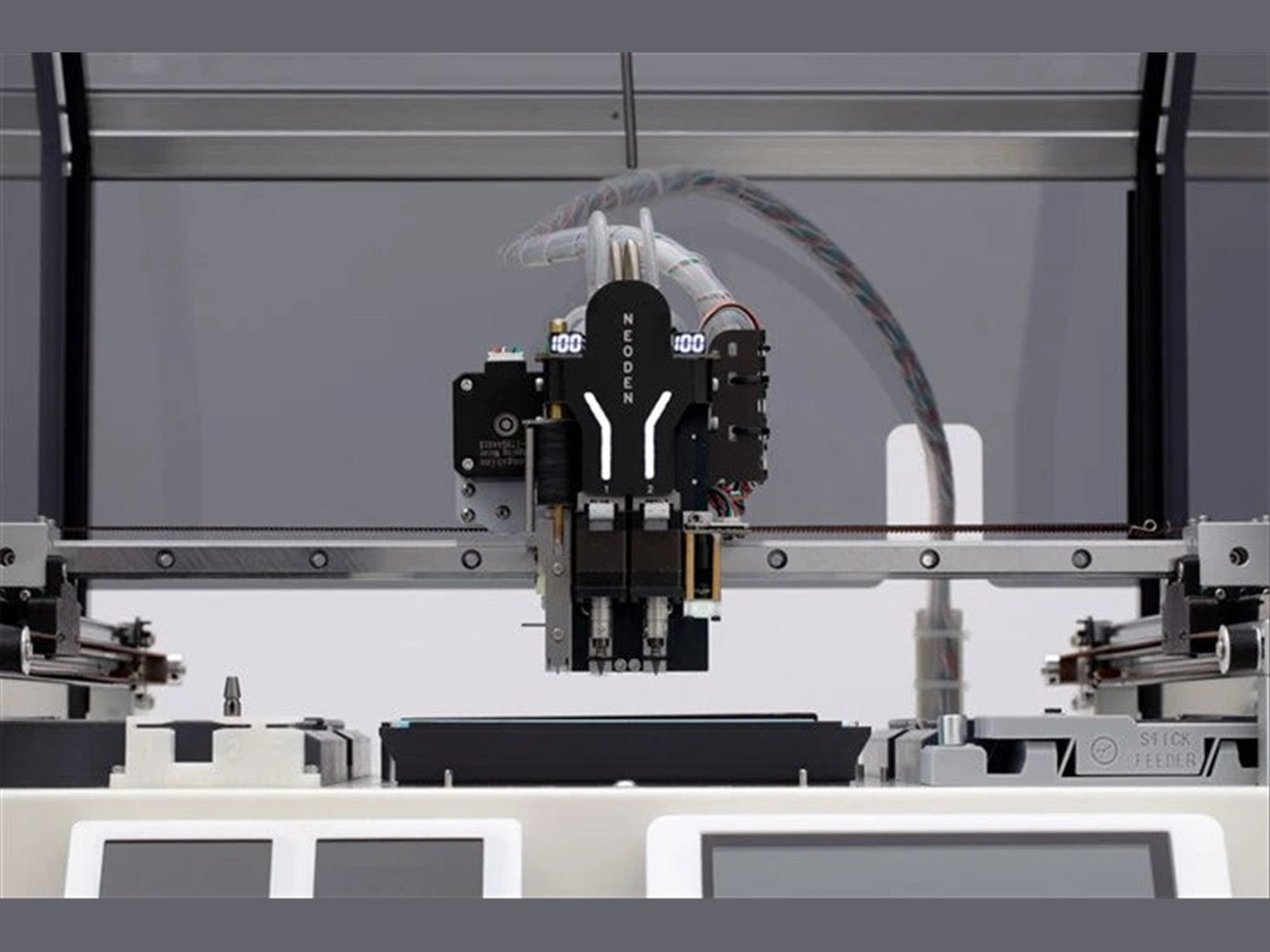

• Single gantry with 2 placement heads
• Vision and vacuum alignment; fiducial mark positioning
• Placement rate: 3,000 CPH with vision on; 4,000 CPH with vision off
• Placement accuracy and X-Y repeatability: ±0.02 mm
• Component range: 0201 up to 18 x 18 mm; maximum component height 12 mm

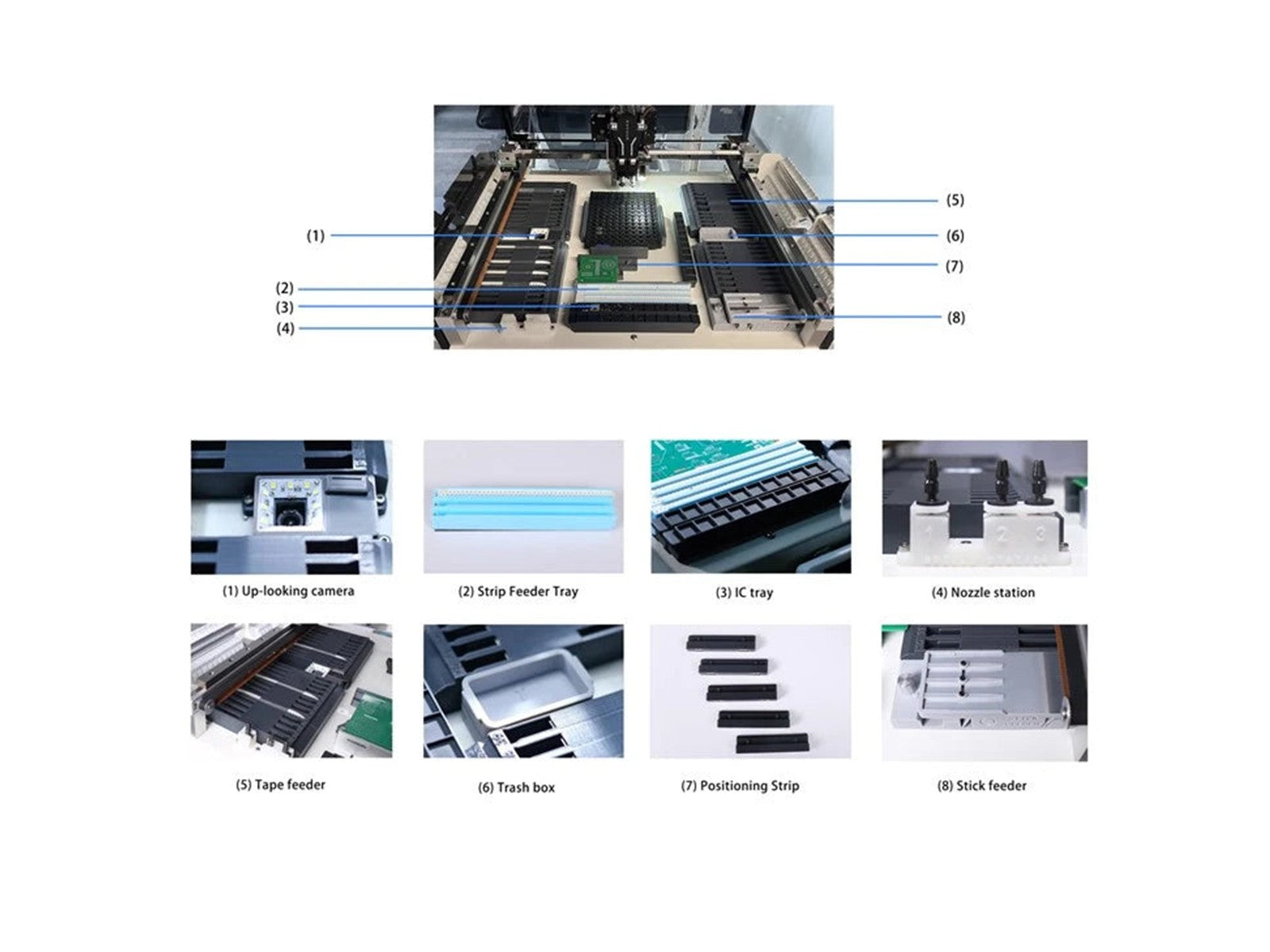

• Feeder capacity: up to 52 tape feeders (8 mm), plus stick, flexible, and bulk feeder positions
• Maximum PCB size: 315 x 350 mm (single-side tape feeders); 249 x 350 mm (dual-side)
• Automatic nozzle changer (3 nozzles)
• Touchscreen programming; imports CSV placement files
• Power: AC 100 to 240 V; no shop air required

Pickup and shipping

Sold as-is. Local pickup in Fullerton, CA. Freight shipping available: choose "Shipping quoted after purchase" at checkout and we'll email you a freight quote to approve.
