(WVC) Wireless Volume Controller
Hurry up! Only 6 item(s) left in stock
Description
The WVC (wireless volume controller) is our no-frills, barebones volume attenuation solution. For a more advanced version, please check out the WVC-PRO. For a more affordable version, please check out the WVC-LITE.

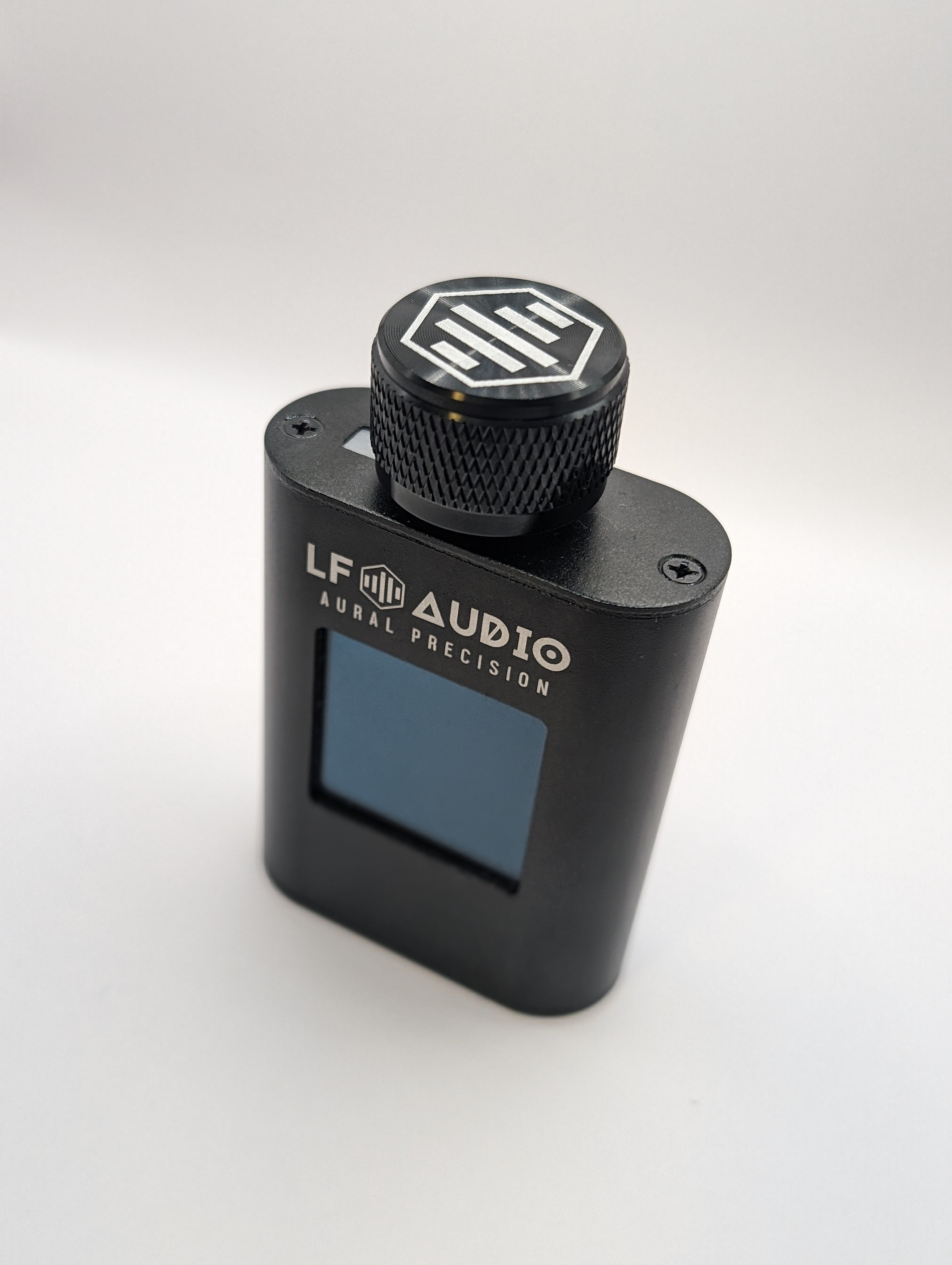

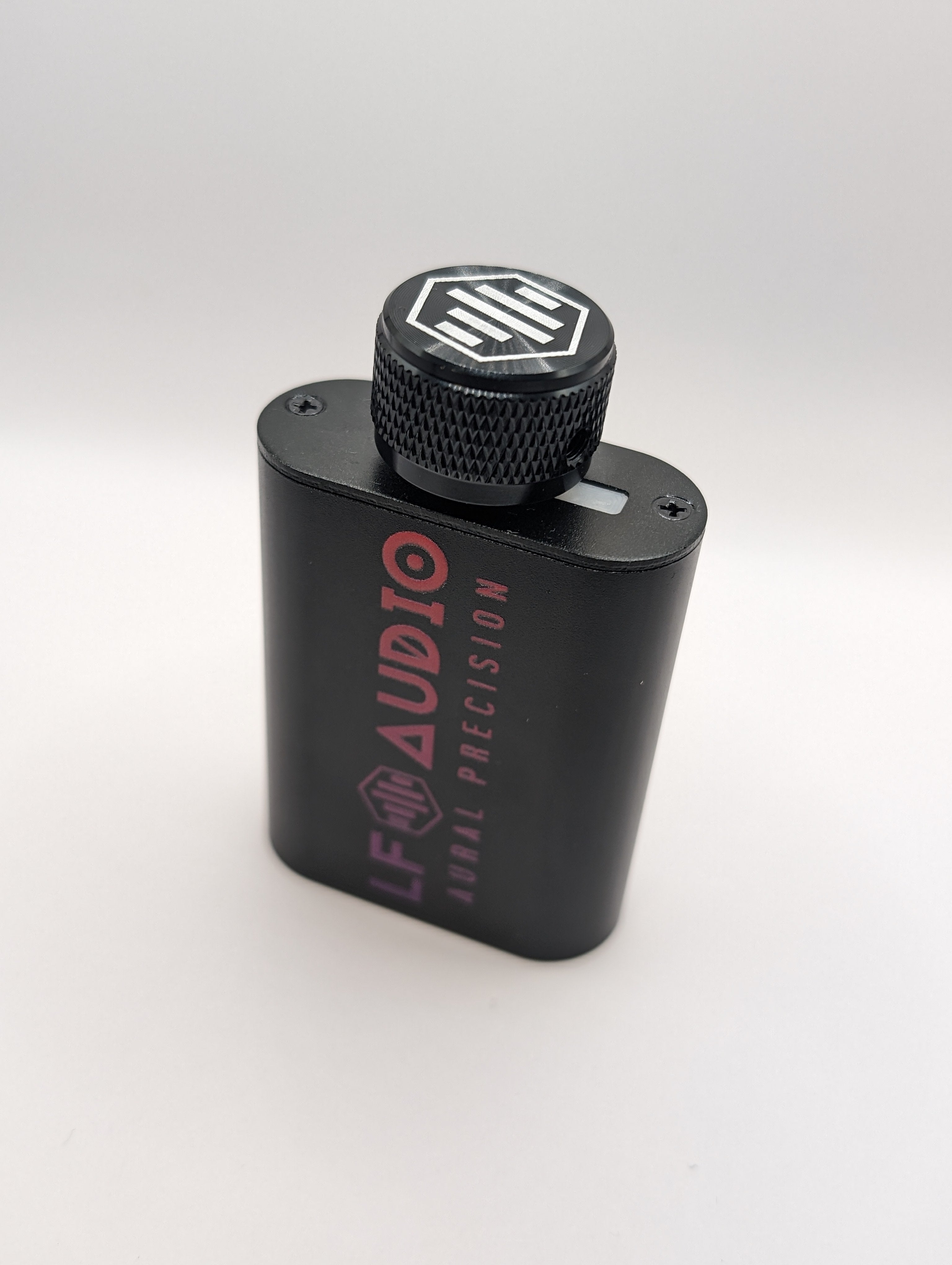

A "wireless bass knob" runs over a custom protocol on the 2.4ghz band (with dedicated 20.5dBm transmitter and 6dBi omnidirectional antenna) to give you long-range mission-critical style control over the volume of your system.
You no longer have to endure the brunt of your monstrous ear-shattering system while giving demos. Step outside of your cabin and control your volume with this wireless knob!
Features
|
Wireless volume control |
Our encrypted, long-range, channel hopping AuralSync™ protocol enables you to wirelessly monitor and control your system from up to 500 feet away! |
| Long Battery Life | Intelligent auto shut-off and power-saving modes ensure your bass knob can last for days between charges! The unit will restart within milliseconds to give you near instantaneous control after wakeup. |
|
Wireless Over The Air (OTA) firmware updates |
Receive new features wirelessly using built-in over-the-air (OTA) updates using the AuralSync ™ App. |
|
Full Range |
Flat frequency response and stable attenuation from 5hz to 30khz |
|
USB-C Charging |
Simply plug in the included USB-C cord into any USB outlet to charge your wireless knob |
|
High-Quality Aluminum Case |
High-quality, compact, and durable case keeps the base unit protected and cool to ensure years of reliable operation. |
|
15 Volt +/- RCA signal level support |
Serious bassheads may run high voltage RCA drivers / DSP's, which easily reach 15-volt peak-to-peak AC signal levels. Our controller reaches this level and adds even more overhead by supporting a full 15V +/- RCA line level! |
| Intelligent Drive System® | Automatically throttle your volume when your voltage drops too low or your temp is too high (PRO only)Video |
| Competition Mode | Automatically throttle your volume when your knob disconnects (battery dies, our of range, etc...) Video |
| Line Driver | Amplify incoming RCA voltage by up to 35.5 db (15v max) to overcome signal limit of some head units Video |

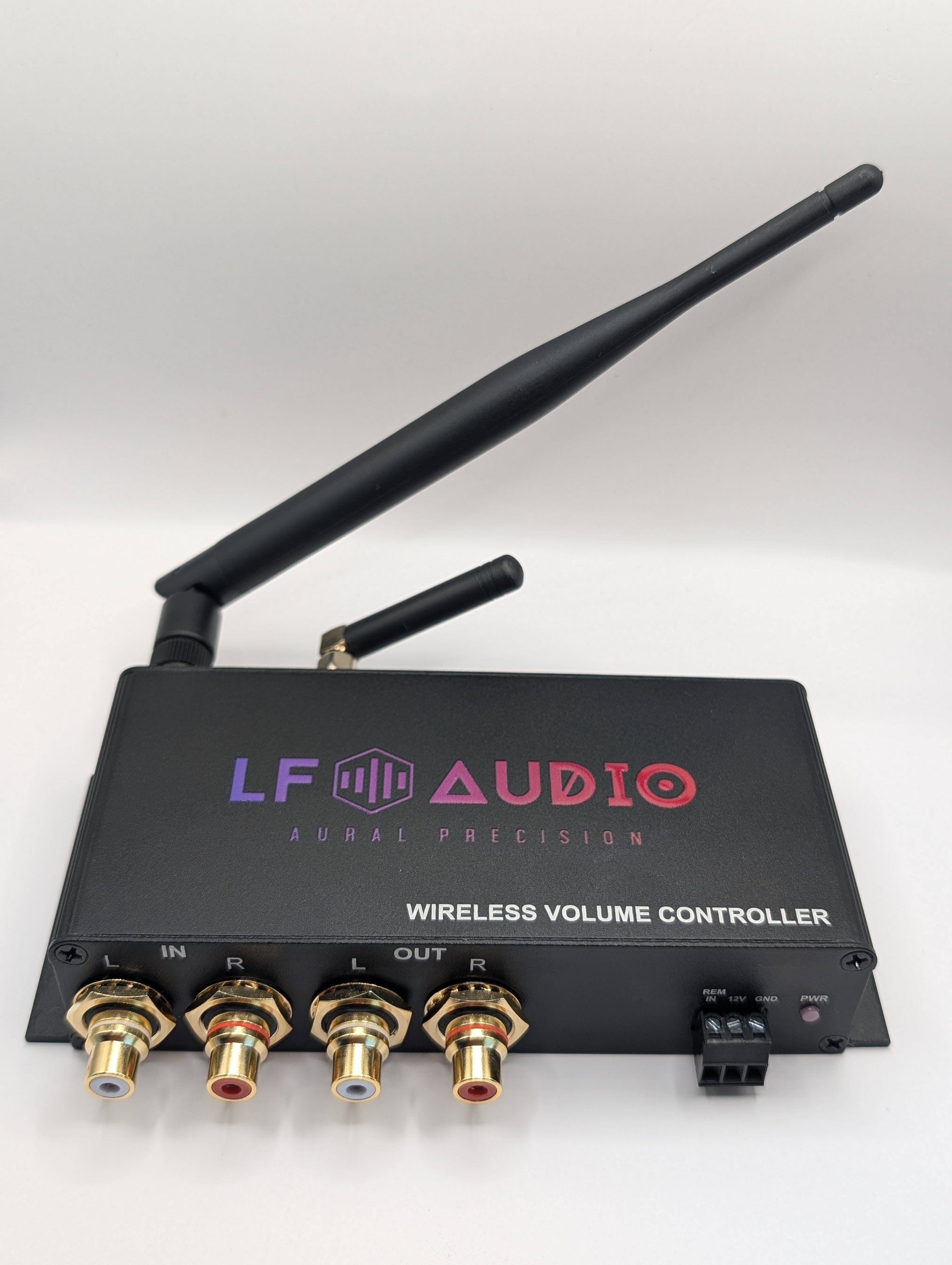

Base Station Physical Info
| Size | 156mm wide x 92mm deep (add space for antenna and RCA cables) x 33mm tall |
| Weight | 9.7oz |
WVC-LITE vs WVC vs WVC-PRO comparison
| WVC-LITE | WVC | WVC-PRO | |
| Channel Options | 2 / 6 | 2 | 2/6 |
| High quality anodized aluminum case | ✔️ | ✔️ | ✔️ |

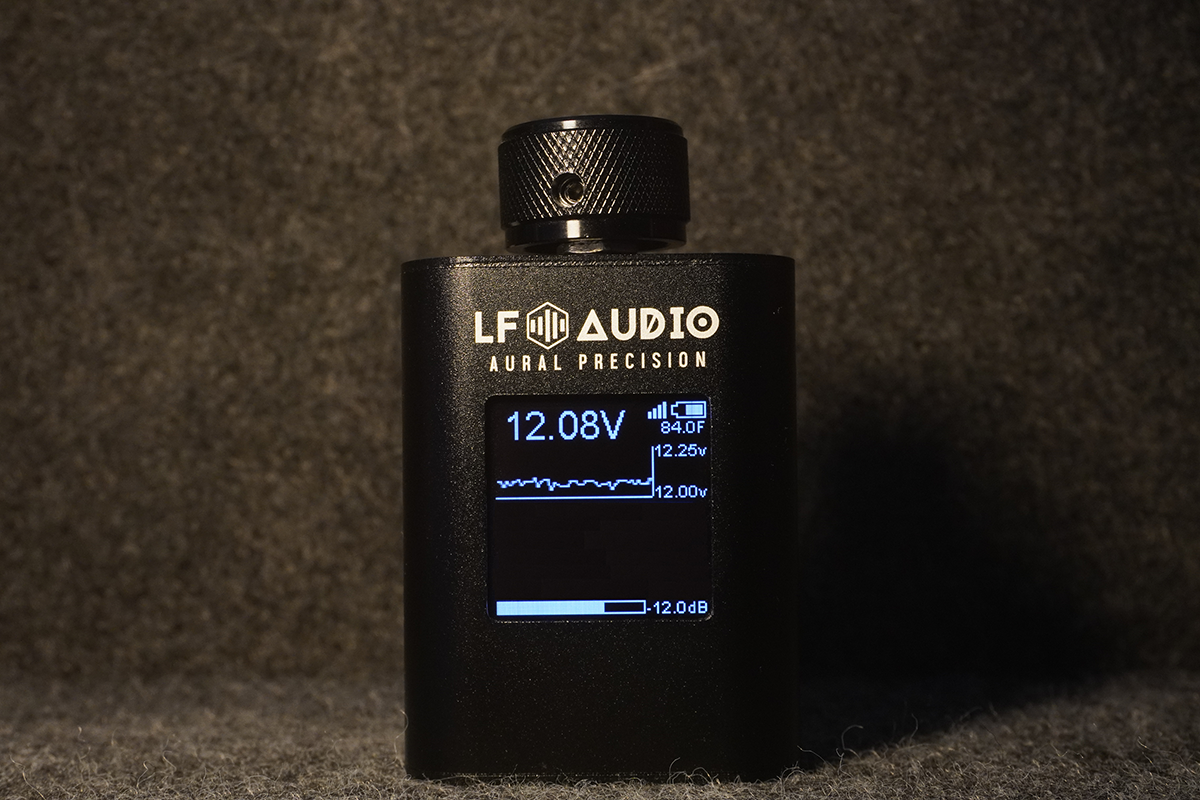

| Built-in Voltmeter | ✔️ | ✔️ | ✔️ |
| AuralSync App Support (Bluetooth Data Streaming) | ✔️ | ✔️ | ✔️ |
| OTA (Over-The-Air Firmware Updates | ✔️ | ✔️ | ✔️ |
| Tiffany Style RCA connectors | ✔️ | ✔️ | ✔️ |
| Gold Plated Tiffany Style RCA connectors | ❌ | ✔️ | ✔️ |
| Performance Certification - full THD+N% testing of the specific unit | ❌ | ✔️ | ✔️ |
| USB-A to USB-C Braided | ❌ | ✔️ | ✔️ |

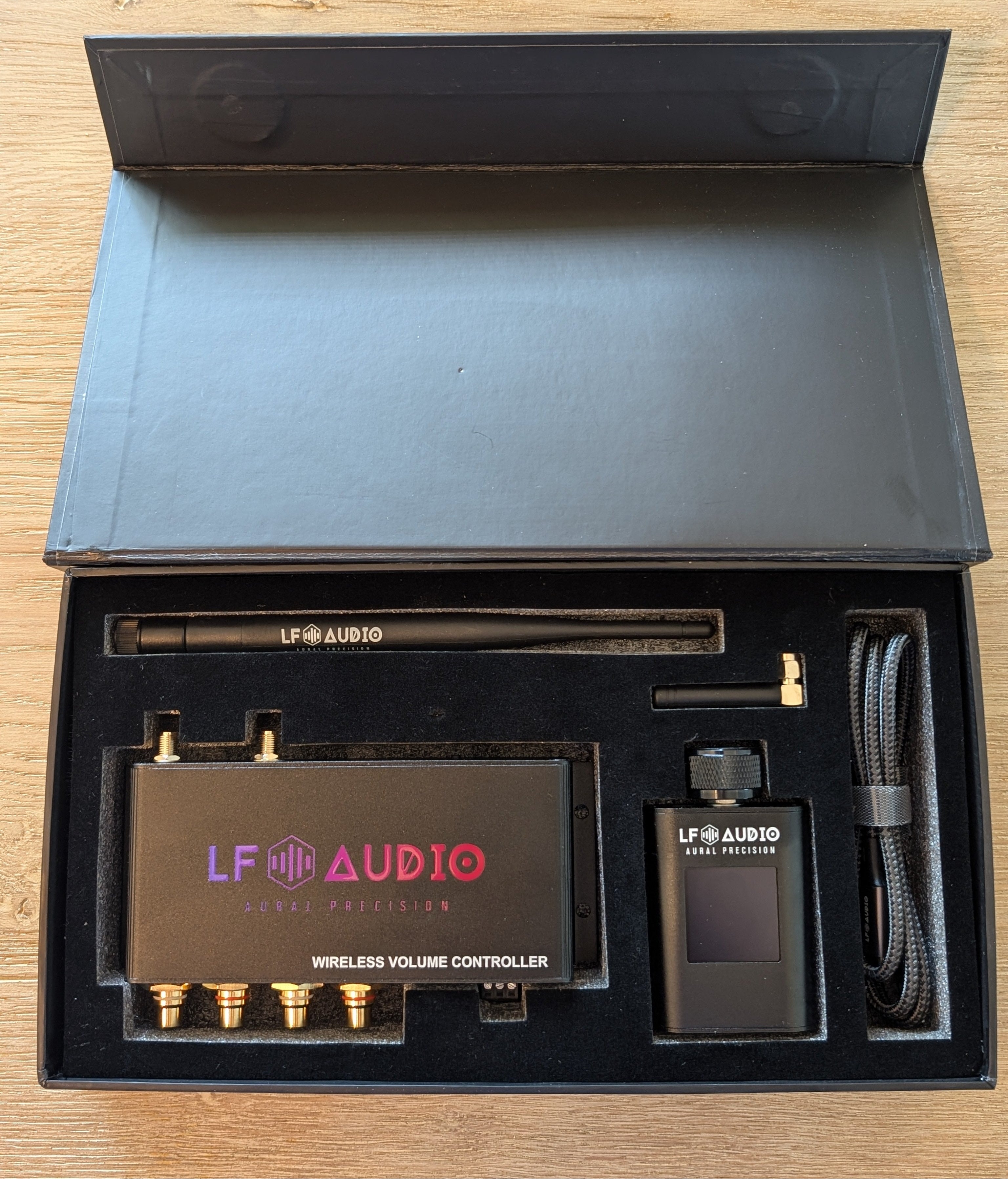

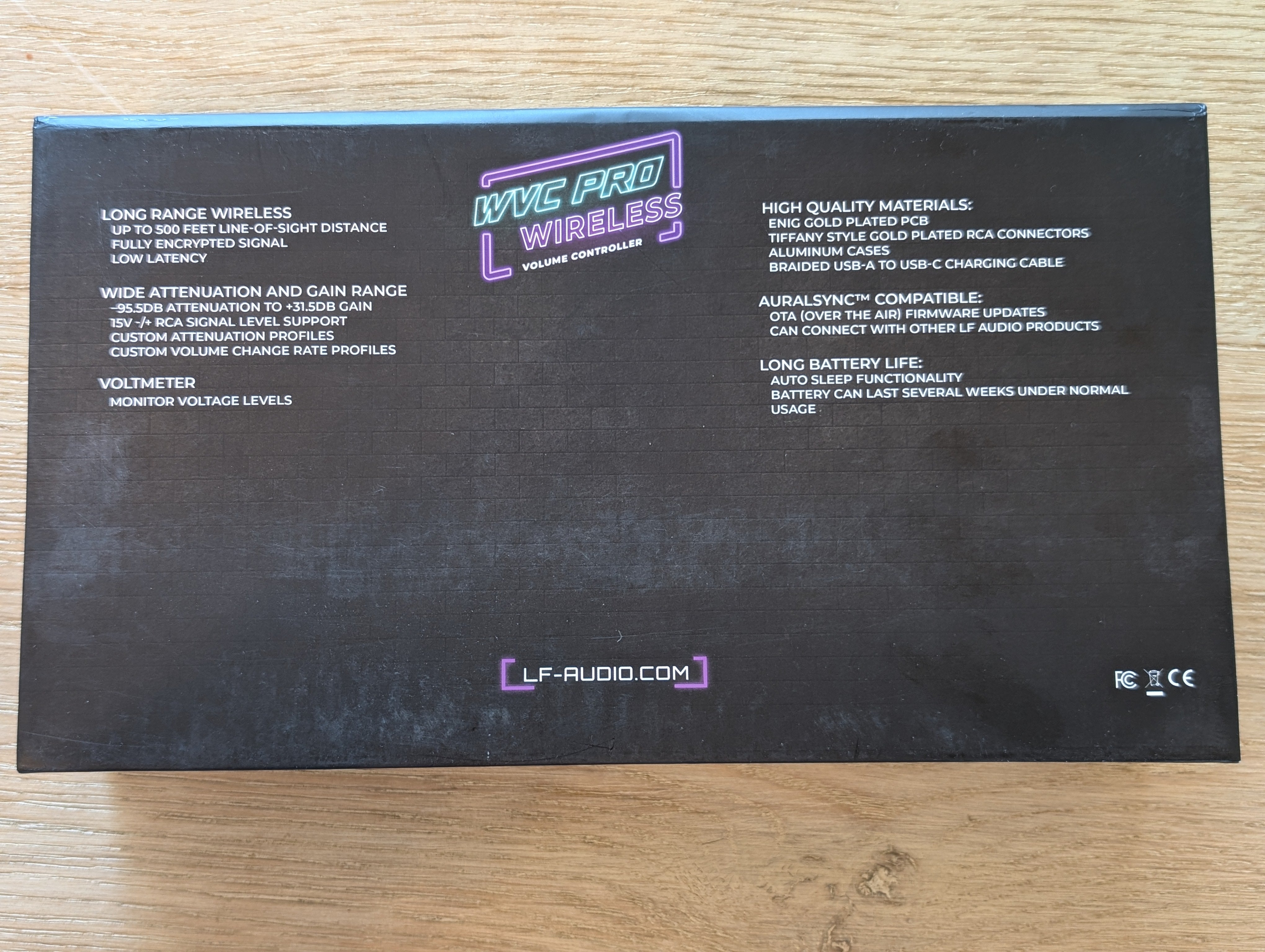

| High-Quality Foam Core Packaging Box | ❌ | ✔️ | ✔️ |
| Can Connect to Other LF Audio Devices (HPPM, WTH, WDD, etc...) | ✔️ | ✔️ | ✔️ |
| Intelligent Drive System® (Auto mute, limit volume) | 🟡 (voltage) |
🟡 (voltage) |
✔️ (voltage + temp) |
| Amplifier Temperature Probe | ❌ | ❌ | ✔️ |
| RCA Oscilloscope | ❌ | ❌ | ✔️ |
| RCA Clip detection | ❌ | ❌ | ✔️ |
| Remote out 12v pin (can drive 1 amp load) | ❌ | ❌ | ✔️ |
| with wrist strap | ❌ | ❌ | ✔️ |
| Knob Mount | ❌ | ❌ | ✔️ |
| to accommodate protective TPU case | ❌ | ❌ | ✔️ |
| Max Line-of-Sight range (feet) | 150 | 500 | |
| Max RCA voltage level supported | 15 VAC peak / 10.6 VAC RMS | ||
| Volume attenuation/gain | −95.5dB to +31.5dB | ||
| 1khz THD+N at 1V RCA level (0dBV) | <0.0015% | ||
| 1khz THD+N at 5V RCA level (12dBV) | ~0.00045% | ||
| 20hz THD+N at 5V RCA level (12dBV) | ~0.0004% | ||
| SNR (Signal-to-noise ratio) | 116 dB (A-weighted) | ||
| Frequency Response | 8hz-30khz | ||
Getting started / wiring instructions
Pairs well with
Multi Unit Control
